   Fortinet Firewall Dealers chennai, Hyderabad, tamilnadu
FortiGate 6500F Firewall
FortiGate 6500F Firewall showroom in chennai, velachery, anna nagar, tamilnadu
FG-6500F/6501F
Interfaces and Modules:
40/100 GE QSFP28 Slots : 4
1/10/25 GE SFP28 Slots : 24
10 GE SFP+ Slots : 3
GE RJ45 Management Ports : 2
USB Ports : 1
Console Port : 1
Internal Storage : 2x 1 TB NVMe (for 6301F and 6501F only)
Included Transceivers : 2x SFP+ (SR 10 GE)

System Performance — Enterprise Traffic Mix:
IPS Throughput : 170 Gbps
NGFW Throughput : 150 Gbps
Threat Protection Throughput : 100 Gbps

System Performance and Capacity :
Firewall Throughput(1518 / 512 / 64 byte, UDP) :  239 / 238 / 135 Gbps
Firewall Latency (64 byte, UDP) : 5 ?s
Firewall Throughput (Packet per Second) : 202.5 Mpps
Concurrent Sessions (TCP) : 200 Million
New Sessions/Sec (TCP) : 3 Million
Firewall Policies : 200,000
IPsec VPN Throughput (512 byte) : 160 Gbps
Gateway-to-Gateway IPsec VPN Tunnels : 16,000
Client-to-Gateway IPsec VPN Tunnels : 90,000
SSL-VPN Throughput :9 Gbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 30,000
SSL Inspection Throughput (IPS, avg. HTTPS) : 110 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) : 50,000
SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 18 Million
Application Control Throughput (HTTP 64K) : 220 Gbps
CAPWAP Throughput (1444 byte, UDP) : N/A
Virtual Domains (Default / Maximum) : 10 / 500
Maximum Number of FortiSwitches Supported : 256
Maximum Number of FortiAPs(Total / Tunnel Mode) : N/A
High Availability Configurations : Supported

Dimensions and Power:
Height x Width x Length (inches): 5.20 x 17.20 x 26.18 5.3 x 17.2 x 27.3
Height x Width x Length (mm) : 132 x 437 x 665 133 x 437 x 694
Weight : 78.26 lbs (35.5 kg) / 79.59 lbs (36.1 kg)

Form Factor (supports EIA/non-EIA standards) : Rack Mount, 3 RU
AC Power Supply : 100–240V AC, 50–60 Hz
Power Consumption (Average / Maximum) : (1,308 / 1,548 W) / (1,328 / 1,568 W)
Current (Maximum) :  20A@240VAC
Redundant Power Supplies : 2+1 Redundant, Hot Swappable

Operating Environment and Certifications:
Operating Temperature : 32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Humidity : 10–90% non-condensing
Noise Level : 57.43 dBA
Operating Altitude Up to : 7,400 ft (2,250 m)
Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Call for Best Price
FortiGate 6300F Firewall
FortiGate 6300F Firewall showroom in chennai, velachery, anna nagar, tamilnadu
FG-6300F/6301F
Interfaces and Modules:
40/100 GE QSFP28 Slots : 4
1/10/25 GE SFP28 Slots : 24
10 GE SFP+ Slots : 3
GE RJ45 Management Ports : 2
USB Ports : 1
Console Port : 1
Internal Storage : 2x 1 TB NVMe (for 6301F and 6501F only)
Included Transceivers : 2x SFP+ (SR 10 GE)

System Performance — Enterprise Traffic Mix :
IPS Throughput : 110 Gbps
NGFW Throughput : 90 Gbps
Threat Protection Throughput : 60 Gbps

System Performance and Capacity:
Firewall Throughput (1518 / 512 / 64 byte, UDP) : 239 / 238 / 135 Gbps
Firewall Latency (64 byte, UDP) : 5 ?s
Firewall Throughput (Packet per Second): 202.5 Mpps
Concurrent Sessions (TCP) 120 Million : 200 Million
New Sessions/Sec (TCP) : 2 Million
Firewall Policies : 200,000
IPsec VPN Throughput (512 byte) :  96 Gbps
Gateway-to-Gateway IPsec VPN Tunnels : 16,000
Client-to-Gateway IPsec VPN Tunnels : 90,000
SSL-VPN Throughput  : 9 Gbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 30,000
SSL Inspection Throughput (IPS, avg. HTTPS) : 66 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) : 30,000
SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 10 Million
Application Control Throughput (HTTP 64K) : 150 Gbps
CAPWAP Throughput (1444 byte, UDP) : N/A
Virtual Domains (Default / Maximum) : 10 / 500
Maximum Number of FortiSwitches Supported : 256
Maximum Number of FortiAPs (Total / Tunnel Mode) : N/A
High Availability Configurations : Supported

Dimensions and Power:
Height x Width x Length (inches) :  5.20 x 17.20 x 26.185.3 x 17.2 x 27.3
Height x Width x Length (mm) : 132 x 437 x 665
Weight : 67.68 lbs (30.7 kg)

Form Factor (supports EIA/non-EIA standards) : Rack Mount, 3 RU
AC Power Supply : 100–240V AC, 50–60 Hz
Redundant Power Supplies : 2+1 Redundant, Hot Swappable

Operating Environment and Certifications:
Operating Temperature : 32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Humidity : 10–90% non-condensing
Noise Level : 57.43 dBA
Operating Altitude Up to : 7,400 ft (2,250 m)
Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Call for Best Price
FortiGate 100E Firewall
FortiGate 100E Firewall showroom in chennai, velachery, anna nagar, tamilnadu
Specifications
FORTIGATE 100E
Hardware Specifications:
GE RJ45 Ports : 14
GE RJ45 Management/HA/DMZ Ports : 1 / 2
GE SFP Slots : 0
GE RJ45 PoE/+ Ports : 0
GE RJ45 WAN Ports : 2
GE RJ45 or SFP Shared Ports : 2
USB Port : 1
Console Port : 1
Internal Storage : 0
Included Transceivers : 0

System Performance — Enterprise Traffic Mix:
IPS Throughput : 500 Mbps
NGFW Throughput : 360 Mbps
Threat Protection Throughput : 250 Mbps

System Performance:
Firewall Throughput (1518 / 512 / 64 byte UDP packets) : 7.4 / 7.4 / 4.4 Gbps
Firewall Latency (64 byte UDP packets) : 3 ?s
Firewall Throughput (Packets Per Second) : 6.6 Mpps
Concurrent Sessions (TCP)  : 2 Million
New Sessions/Second (TCP) : 30,000
Firewall Policies : 10,000
IPsec VPN Throughput (512 byte) : 4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels : 2,000
Client-to-Gateway IPsec VPN Tunnels : 10,000
SSL-VPN Throughput : 250 Mbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 500
SSL Inspection Throughput (IPS, avg. HTTPS) : 130 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) : 130
SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 125,000
Application Control Throughput (HTTP 64K) : 1 Gbps
CAPWAP Throughput (1444 byte, UDP) : 1.5 Gbps
Virtual Domains (Default / Maximum) : 10 / 10
Maximum Number of FortiSwitches Supported : 24
Maximum Number of FortiAPs (Total / Tunnel Mode) : 64 / 32
Maximum Number of FortiTokens : 5,000
High Availability Configurations : Active / Active, Active / Passive, Clustering

Dimensions:
Height x Width x Length (inches) : 1.75 x 17 x 10 1.75 x 17 x 10 1.75 x 17 x 10 1.75 x 17 x 15.5
Height x Width x Length (mm) : 44.45 x 432 x 254 44.45 x 432 x 254 44.45 x 432 x 254 44.45 x 432 x 394
Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU Rack Mount, 1 RU Rack Mount, 1 RU Rack Mount, 1 RU
Weight : 7.28 lbs (3.3 kg) 7.28 lbs (3.3 kg) 7.28 lbs (3.3 kg) 12.4 lbs (5.6 kg)

Environment:
Power Input : 100–240V AC, 50–60 Hz
Maximum Current :  100V / 0.52A, 240V / 0.22A 100V / 0.59A, 240V / 0.25A 100V / 0.52A, 240V / 0.22A 100V / 5A
Total Available PoE Power Budget* — — — 400 W
Power Consumption (Average / Maximum) : 23.0 W / 28.6 W; 51.9 VA 24.8 W / 33.8 W; 59.2 VA 24.4 W / 28.6 W; 51.9 VA 477.1 W / 500.0 W
Heat Dissipation : 97.6 BTU/h 115.3 BTU/h 97.6 BTU/h 1706.07 BTU/h
Call for Best Price
FortiGate 200E Firewall
FortiGate 200E Firewall showroom in chennai, velachery, anna nagar, tamilnadu
FORTIGATE 200E FORTIGATE 201E
Hardware Specifications:
GE RJ45 WAN Interfaces : 2
GE RJ45 Management/HA Ports : 2
GE RJ45 Ports : 14
GE SFP Slots : 4
USB port : 1
Console (RJ45): 1
Local Storage : 1x 480 GB SSD
Included Transceivers : 0

System Performance — Enterprise Traffic Mix:
IPS Throughput : 2.2 Gbps
NGFW Throughput : 1.8 Gbps
Threat Protection Throughput : 1.2 Gbps

System Performance:
Firewall Throughput(1518 / 512 / 64 byte UDP packets) : 20 / 20 / 9 Gbps
Firewall Latency (64 byte UDP packets) : 3 ?s
Firewall Throughput (Packets Per Second) : 13.5 Mpps
Concurrent Sessions (TCP) : 2 Million
New Sessions/Second (TCP) : 135,000
Firewall Policies : 10,000
IPsec VPN Throughput (512 byte) : 7.2 Gbps
Gateway-to-Gateway IPsec VPN Tunnels : 2,000
Client-to-Gateway IPsec VPN Tunnels : 10,000
SSL-VPN Throughput : 900 Mbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 500
SSL Inspection Throughput (IPS, avg. HTTPS) : 820 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) : 1,000
SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 240,000
Application Control Throughput (HTTP 64K) : 3.5 Gbps
CAPWAP Throughput (1444 byte, UDP) : 1.5 Gbps
Virtual Domains (Default / Maximum) : 10 / 10
Maximum Number of FortiSwitches Supported : 64
Maximum Number of FortiAPs (Total / Tunnel Mode) : 256 / 128
Maximum Number of FortiTokens : 5,000
High Availability Configurations : Active / Active, Active / Passive, Clustering

Dimensions:
Height x Width x Length (inches) : 1.75 x 17.0 x 11.9
Height x Width x Length (mm) : 44.45 x 432 x 301
Weight : 11.9 lbs (5.4 kg) 12.12 lbs (5.5 kg)
Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU

Environment:
Power Input :100–240V AC, 50–60 Hz
Maximum Current : 110 V / 3 A, 220 V / 0.42 A
Power Consumption (Average / Maximum) : 70.98 / 109.9 W
Heat Dissipation : 374.9 BTU/h
Operating Temperature : 32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Humidity : 10–90% non-condensing
Noise Level : 31.1 dBA
Operating Altitude Up to : 7,400 ft (2,250 m)
Compliance : FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6
Call for Best Price
FortiGate 300E Firewall
FortiGate 300E Firewall showroom in chennai, velachery, anna nagar, tamilnadu
FORTIGATE 300E FORTIGATE 301E
Interfaces and Modules:
GE RJ45 Interfaces : 16
GE SFP Slots : 16
GE RJ45 Management Ports : 2
USB Ports : 2
RJ45 Console Port : 1
Local Storage : 2x 240 GB SSD
Included Transceivers : 2x SFP (SX 1 GE)

System Performance — Enterprise Traffic Mix:
IPS Throughput : 5 Gbps
NGFW Throughput : 3.5 Gbps
Threat Protection Throughput : 3 Gbps

System Performance and Capacity:
IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 32 / 32 / 20 Gbps
IPv6 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 32 / 32 / 20 Gbps
Firewall Latency (64 byte, UDP) : 3 ?s
Firewall Throughput (Packet per Second) : 30 Mpps
Concurrent Sessions (TCP) : 4 Million
New Sessions/Second (TCP) : 300,000
Firewall Policies : 10,000
IPsec VPN Throughput (512 byte) : 20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels : 2,000
Client-to-Gateway IPsec VPN Tunnels : 50,000
SSL-VPN Throughput : 2.5 Gbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode):5,000
SSL Inspection Throughput (IPS, avg. HTTPS) : 3.9 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) : 2,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 340,000
Application Control Throughput (HTTP 64K) : 7 Gbps
CAPWAP Throughput (1444 byte, UDP) : 5 Gbps
Virtual Domains (Default / Maximum) : 10 / 10
Maximum Number of FortiSwitches Supported : 72
Maximum Number of FortiAPs (Total / Tunnel) : 512 / 256
Maximum Number of FortiTokens : 5,000
High Availability Configurations : Active-Active, Active-Passive, Clustering

Dimensions and Power:
Height x Width x Length (inches) : 1.75 x 17.0 x 15.0
Height x Width x Length (mm) : 44.45 x 432 x 380
Weight : 16.1 lbs (7.3 kg) 16.6 lbs (7.6 kg)
Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU
Power Consumption (Average / Maximum) : 90 W / 173 W 95 W / 180 W
Power Input : 100V–240V AC, 50–60Hz
Current (Maximum) : 6A
Heat Dissipation : 570 BTU/h 614 BTU/h
Redundant Power Supplies (Hot Swappable) : optional

Operating Environment and Certifications:
Operating Temperature : 32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Humidity : 10–90% non-condensing
Noise Level : 48 dBA
Operating Altitude Up to : 7,400 ft (2,250 m)
Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
Call for Best Price
FortiGate 400E Firewall
FortiGate 400E Firewall showroom in chennai, velachery, anna nagar, tamilnadu
FORTIGATE 400E FORTIGATE 401E
Interfaces and Modules:
GE RJ45 Interfaces : 16
GE SFP Slots : 16
GE RJ45 Management Ports : 2
USB Ports : 2
RJ45 Console Port : 1
Local Storage : 2x 240 GB SSD
Included Transceivers : 2x SFP (SX 1 GE)

System Performance — Enterprise Traffic Mix:
IPS Throughput : 7.8 Gbps
NGFW Throughput : 6 Gbps
Threat Protection Throughput : 5 Gbps

System Performance and Capacity:
IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 32 / 32 / 24 Gbps
IPv6 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 32 / 32 / 24 Gbps
Firewall Latency (64 byte, UDP) : 3 ?s
Firewall Throughput (Packet per Second) : 36 Mpps
Concurrent Sessions (TCP) : 4 Million
New Sessions/Second (TCP) : 450,000
Firewall Policies : 10,000
IPsec VPN Throughput (512 byte) :  20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels  : 2,000
Client-to-Gateway IPsec VPN Tunnels : 50,000
SSL-VPN Throughput : 4.5 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 5,000
SSL Inspection Throughput (IPS, avg. HTTPS) : 4.8 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) : 4,000
SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 300,000
Application Control Throughput (HTTP 64K) : 12 Gbps
CAPWAP Throughput (1444 byte, UDP) : 14.8 Gbps
Virtual Domains (Default / Maximum) : 10 / 10
Maximum Number of FortiSwitches Supported : 72
Maximum Number of FortiAPs (Total / Tunnel)  : 512 / 256
Maximum Number of FortiTokens  : 5,000
High Availability Configurations : Active-Active, Active-Passive, Clustering

FORTIGATE 400E FORTIGATE 401E
Dimensions and Power:
Height x Width x Length (inches) : 1.75 x 17.0 x 15.0
Height x Width x Length (mm) : 44.45 x 432 x 380
Weight : 16.4 lbs (7.4 kg) 16.9 lbs (7.9 kg)
Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU
Power Consumption (Average / Maximum) : 109 W / 214 W 115 W / 221 W
Power Input : 100–240V, 50–60Hz
Current (Maximum) : 6A
Heat Dissipation : 730 BTU/h 754 BTU/h
Redundant Power Supplies (Hot Swappable) : optional

Operating Environment and Certifications:
Operating Temperature : 32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Humidity : 10–90% non-condensing
Noise Level : 48 dBA
Operating Altitude Up to : 7,400 ft (2,250 m)
Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
Call for Best Price
FortiGate 500E Firewall
FortiGate 500E Firewall showroom in chennai, velachery, anna nagar, tamilnadu
FORTIGATE 500E FORTIGATE 501E
Interfaces and Modules:
10 GE SFP+ Slots : 2
GE RJ45 Interfaces : 8
GE SFP Slots : 8
GE RJ45 Management Ports : 2
USB Ports : 2
RJ45 Console Port : 1
Local Storage : 2x 240 GB SSD
Included Transceivers : 2x SFP (SX 1 GE)

System Performance — Enterprise Traffic Mix:
IPS Throughput : 7.9 Gbps
NGFW Throughput : 5 Gbps
Threat Protection Throughput : 4.7 Gbps

System Performance and Capacity:
IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 36 / 36 / 22 Gbps
IPv6 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 36 / 36 / 22 Gbps
Firewall Latency (64 byte, UDP) : 2 ?s
Firewall Throughput (Packet per Second) : 33 Mpps
Concurrent Sessions (TCP) : 8 Million
New Sessions/Second (TCP) : 300,000
Firewall Policies : 10,000
IPsec VPN Throughput (512 byte) : 20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels : 2,000
Client-to-Gateway IPsec VPN Tunnels : 50,000
SSL-VPN Throughput : 5 Gbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode):10,000
SSL Inspection Throughput (IPS, avg. HTTPS) : 5.7 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) : 3,500
SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 800,000
Application Control Throughput (HTTP 64K) : 14 Gbps
CAPWAP Throughput (1444 byte, UDP) : 18 Gbps
Virtual Domains (Default / Maximum) : 10 / 10
Maximum Number of FortiSwitches Supported : 72
Maximum Number of FortiAPs (Total / Tunnel) : 512 / 256
Maximum Number of FortiTokens : 5,000
Maximum Number of Registered Endpoints : 2,000
High Availability Configurations : Active-Active, Active-Passive, Clustering
FORTIGATE 500E FORTIGATE 501E
Dimensions and Power :
Height x Width x Length (inches) : 1.75 x 17.0 x 15.0
Height x Width x Length (mm) : 44.45 x 432 x 380
Weight : 16.1 lbs (7.3 kg)
Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU
Power Consumption (Average / Maximum) : 95 W / 193 W 105 W / 200 W
Power Input : 100–240V, 50–60Hz
Current (Maximum) : 6A
Heat Dissipation : 613 BTU/h
Redundant Power Supplies (Hot Swappable) : optional

Operating Environment and Certifications:
Operating Temperature : 32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Humidity : 10–90% non-condensing
Noise Level : 43 dBA
Operating Altitude Up to : 7,400 ft (2,250 m)
Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
Call for Best Price
FortiGate 600E Firewall
FortiGate 600E Firewall showroom in chennai, velachery, anna nagar, tamilnadu
Interfaces and Modules:
10 GE SFP+ Slots : 2
GE RJ45 Interfaces : 8
GE SFP Slots : 8
GE RJ45 Management Ports : 2
USB Ports : 2
RJ45 Console Port : 1
Local Storage : 2x 240 GB SSD
Included Transceivers : 2x SFP (SX 1 GE)

System Performance — Enterprise Traffic Mix:
IPS Throughput : 10 Gbps
NGFW Throughput : 9.5 Gbps
Threat Protection Throughput : 7 Gbps

System Performance and Capacity:
IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP):36 / 36 / 27 Gbps
IPv6 Firewall Throughput(1518 / 512 / 64 byte, UDP):36 / 36 / 27 Gbps
Firewall Latency (64 byte, UDP) : 2 ?s
Firewall Throughput (Packet per Second) : 40.5 Mpps
Concurrent Sessions (TCP) : 8 Million
New Sessions/Second (TCP) : 450,000
Firewall Policies : 10,000
IPsec VPN Throughput (512 byte) : 20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels : 2,000
Client-to-Gateway IPsec VPN Tunnels : 50,000
SSL-VPN Throughput : 7 Gbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) :10,000
SSL Inspection Throughput (IPS, avg. HTTPS) : 8 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) : 5,500
SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 800,000
Application Control Throughput (HTTP 64K) : 15 Gbps
CAPWAP Throughput (HTTP 64K) : 18 Gbps
Virtual Domains (Default / Maximum) : 10 / 10
Maximum Number of FortiSwitches Supported : 96
Maximum Number of FortiAPs (Total / Tunnel) : 1,024 / 512
Maximum Number of FortiTokens : 5,000
High Availability Configurations : Active-Active, Active-Passive, Clustering

Dimensions and Power :
Height x Width x Length (inches) : 1.75 x 17.0 x 15.0
Height x Width x Length (mm) : 44.45 x 432 x 380
Weight : 16.1 lbs (7.3 kg)
Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU
Power Consumption (Average / Maximum) : 129 W / 244 W
Power Source : 100–240V 50–60Hz
Current (Maximum) : 6A @ 100V
Heat Dissipation : 832 BTU/h
Redundant Power Supplies (Hot Swappable) : optional

Operating Environment and Certifications:
Operating Temperature : 32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Humidity : 10–90% non-condensing
Noise Level : 59 dBA
Operating Altitude Up to : 9,843 ft (3,000 m)
Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
Call for Best Price
Fortinet FortiGate 60D Rugged Firewall
Fortinet FortiGate 60D Rugged Firewall showroom in chennai, velachery, anna nagar, tamilnadu
  • FORTIGATE 60E
  • Hardware Specifications :
  • GE RJ45 WAN / DMZ Ports : 2 / 1
  • GE RJ45 Internal Ports : 7
  • GE RJ45 PoE/+ Ports : 0
  • Wireless Interface : 0
  • USB Ports : 1
  • Console (RJ45 ) : 1
  • Internal Storage : 0
  • FORTIGATE 60E-POE
  • Hardware Specifications :
  • GE RJ45 WAN / DMZ Ports :  2
  • GE RJ45 Internal Ports  : 0
  • GE RJ45 PoE/+ Ports  : 8
  • Wireless Interface : 0
  • USB Ports : 1
  • Console (RJ45) : 1
  • Internal Storage : 0
  • FORTIWIFI 60E
  • Hardware Specifications :
  • GE RJ45 WAN / DMZ Ports  :2 / 1
  • GE RJ45 Internal Ports  : 7
  • GE RJ45 PoE/+ Ports  : 0
  • Wireless Interface : 802.11 a/b/g/n/ac
  • USB Ports : 1
  • Console (RJ45) : 1
  • Internal Storage  : 0
  • FORTIGATE 61E
  • Hardware Specifications :
  • GE RJ45 WAN / DMZ Ports : 2 / 1
  • GE RJ45 Internal Ports : 7
  • GE RJ45 PoE/+ Ports  : 0
  • Wireless Interface  : 0
  • USB Ports : 1
  • Console (RJ45) : 1
  • Internal Storage :  1x 128 GB SSD
  • FORTIWIFI 61E
  • Hardware Specifications :
  • GE RJ45 WAN / DMZ Ports :  2 / 1
  • GE RJ45 Internal Ports : 7
  • GE RJ45 PoE/+ Ports  : 0
  • Wireless Interface : 802.11 a/b/g/n/ac
  • USB Ports : 1
  • Console (RJ45) : 1
  • Internal Storage : 1x 128 GB SSD
  • System Performance — Enterprise Traffic Mix :
  • IPS Throughput : 400 Mbps
  • NGFW Throughput : 250 Mbps
  • Threat Protection Throughput : 200 Mbps
  • System Performance:
  • Firewall Throughput (1518 / 512 / 64 byte UDP packets) : 3 / 3 / 3 Gbps
  • Firewall Latency (64 byte UDP packets) : 3 ?s
  • Firewall Throughput (Packets Per Second) : 4.5 Mpps
  • Concurrent Sessions (TCP) : 1.3 Million
  • New Sessions/Second (TCP) : 30,000
  • Firewall Policies : 5,000
  • IPsec VPN Throughput (512 byte) : 2 Gbps
  • Gateway-to-Gateway IPsec VPN Tunnels : 200
  • Client-to-Gateway IPsec VPN Tunnels : 500
  • SSL-VPN Throughput : 150 Mbps
  • Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 200
  • SSL Inspection Throughput (IPS, avg. HTTPS) : 135 Mbps
  • SSL Inspection CPS (IPS, avg. HTTPS) : 135
  • SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 75,000
  • Application Control Throughput (HTTP 64K) : 650 Mbps
  • CAPWAP Throughput (HTTP 64K) : 890 Mbps
  • Virtual Domains (Default / Maximum) : 10 / 10
  • Maximum Number of FortiSwitches Supported : 16
  • Maximum Number of FortiAPs (Total / Tunnel Mode) : 30 / 10
  • Maximum Number of FortiTokens : 500
  • High Availability Configurations : Active / Active, Active / Passive, Clustering
  • Dimensions
  • Height x Width x Length (inches) 1.5 x 8.5 x 6.3
  • Height x Width x Length (mm) 38 x 216 x 160
  • Weight 1.9 lbs (0.9 kg)
  • Form Factor : Desktop
Call for Best Price
Fortinet FortiGate 50E Next Generation Firewall
Fortinet FortiGate 50E Next Generation Firewall showroom in chennai, velachery, anna nagar, tamilnadu
  • Hardware Specifications
  • GE RJ45 Switch Ports : 5
  • GE RJ45 WAN Ports : 2
  • USB Ports : 1
  • Console (RJ45) : 1
  • System Performance — Enterprise Traffic Mix :
  • IPS Throughput : 350 Mbps
  • NGFW Throughput : 220 Mbps
  • Threat Protection Throughput : 160 Mbps
  • System Performance :
  • Firewall Throughput : 2.5 Gbps
  • Firewall Latency (64 byte UDP packets) : 180 ?s
  • Firewall Throughput (Packets Per Second): 375 Kpps
  • Concurrent Sessions (TCP) : 1.8 Million
  • New Sessions/Second (TCP) : 21,000
  • Firewall Policies : 5,000
  • IPsec VPN Throughput (512 byte) : 90 Mbps
  • Gateway-to-Gateway IPsec VPN Tunnels : 200
  • Client-to-Gateway IPsec VPN Tunnels : 250
  • SSL-VPN Throughput : 100 Mbps
  • Concurrent SS-VPN Users (Recommended Maximum, Tunnel Mode) : 200
  • SSL Inspection Throughput (IPS, avg. HTTPS) : 150 Mbps
  • SSL Inspection CPS (IPS, avg. HTTPS) : 140
  • SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 75,000
  • Application CoLntrol Throughput (HTTP 64K) : 450 Mbps
  • CAPWAP Throughput (HTTP 64K) : 1.2 Gbps
  • Virtual Domains (Default / Maximum) : 5 / 5
  • Maximum Number of FortiSwitches Supported : 8
  • Maximum Number of FortiAPs (Total / Tunnel Mode) : 10 / 5
  • Maximum Number of FortiTokens : 500
  • High Availability Configurations : Active/Active, Active/Passive, Clustering
  • Dimensions :
  • Height x Width x Length (inches) : 1.44 x 8.52 x 5.5
  • Height x Width x Length (mm) : 36.5 x 216 x 140
  • Weight  : 2.015 lbs(0.914 kg)
  • Form Factor : Desktop
Call for Best Price

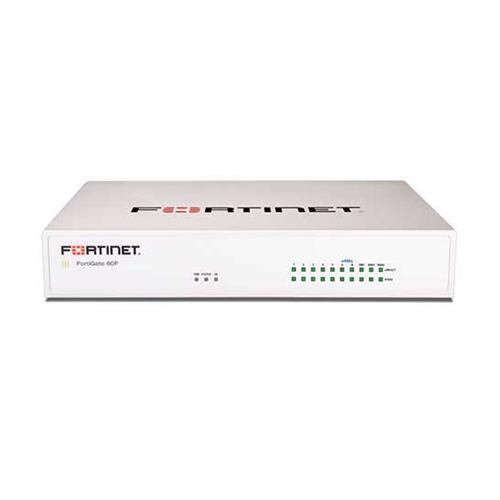

Fortinet FortiGate 60F Next Generation Firewall
Fortinet FortiGate 60F Next Generation Firewall showroom in chennai, velachery, anna nagar, tamilnadu
  • FORTIGATE 60F
  • Hardware Specifications :
  • GE RJ45 WAN / DMZ Ports : 2 / 1
  • GE RJ45 Internal Ports : 7
  • GE RJ45 FortiLink Ports : 2
  • Wireless Interface : 0
  • USB Ports : 1
  • Console (RJ45) : 1
  • Internal Storage : 0
  • FORTIGATE 61F
  • Hardware Specifications
  • GE RJ45 WAN / DMZ Ports : 2 / 1
  • GE RJ45 Internal Ports : 7
  • GE RJ45 FortiLink Ports : 2
  • Wireless Interface : 0
  • USB Ports  : 1
  • Console (RJ45) : 1
  • Internal Storage : 1 x 128 GB SSD
  • FORTIWIFI 60F
  • Hardware Specifications
  • GE RJ45 WAN / DMZ Ports : 2 / 1
  • GE RJ45 Internal Ports 7
  • GE RJ45 FortiLink Ports 2
  • Wireless Interface : 802.11 a/b/g/n/ac-W2
  • USB Ports : 1
  • Console (RJ45) : 1
  • Internal Storage : 0
  • FORTIWIFI 61F
  • Hardware Specifications
  • GE RJ45 WAN / DMZ Ports : 2 / 1
  • GE RJ45 Internal Ports : 7
  • GE RJ45 FortiLink Ports : 2
  • Wireless Interface : 802.11 a/b/g/n/ac-W2
  • USB Ports : 1
  • Console (RJ45) : 1
  • Internal Storage : 1 x 128 GB SSD
  • System Performance — Enterprise Traffic Mix :
  • IPS Throughput : 1.4 Gbps
  • NGFW Throughput : 1 Gbps
  • Threat Protection Throughput : 700 Mbps
  • System Performance :
  • Firewall Throughput(1518 / 512 / 64 byte UDP packets) : 10/10/6 Gbps
  • Firewall Latency (64 byte UDP packets) : 4 ?s
  • Firewall Throughput (Packets Per Second) : 9 Mpps
  • Concurrent Sessions (TCP) : 700,000
  • New Sessions/Second (TCP) : 35,000
  • Firewall Policies : 5,000
  • IPsec VPN Throughput (512 byte) : 6.5 Gbps
  • Gateway-to-Gateway IPsec VPN Tunnels : 200
  • Client-to-Gateway IPsec VPN Tunnels : 500
  • SSL-VPN Thro 9ughput :00 Mbps
  • Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 200
  • SSL Inspection Throughput(IPS, avg. HTTPS) : 750 Mbps
  • SSL Inspection CPS (IPS, avg. HTTPS) : 400
  • SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 55,000
  • Application Control Throughput (HTTP 64K) : 1.8 Gbps
  • CAPWAP Throughput (HTTP 64K) : 8 Gbps
  • Virtual Domains (Default / Maximum) : 10 / 10
  • Maximum Number of FortiSwitches Supported : 16
  • Maximum Number of FortiAPs (Total / Tunnel Mode) : 30 / 10
  • Maximum Number of FortiTokens : 500
  • High Availability Configurations : Active / Active, Active / Passive, Clustering
  • Dimensions :
  • Height x Width x Length (inches) : 1.5 x 8.5 x 6.3
  • Height x Width x Length (mm) : 38.5 x 216 x 160 mm
  • Weight  : 2.23 lbs (1.01 kg)
  • Form Factor : Desktop
Call for Best Price
FortiGate 800D Firewall
FortiGate 800D Firewall showroom in chennai, velachery, anna nagar, tamilnadu
Interfaces and Modules:
Hardware Accelerated 10 GE SFP+ Slots : 2
Hardware Accelerated GE SFP Slots : 8
Hardware Accelerated GE RJ45 Ports : 20
Accelerated GE RJ45 Bypass Interfaces : 4
GE RJ45 Management / HA Ports : 2
USB Ports (Client / Server) : 1 / 2
Console Port : 1
Onboard Storage : 1x 240 GB SSD
Included Transceivers : 2x SFP (SX 1 GE)

System Performance — Enterprise Traffic Mix:
IPS Throughput : 4.2 Gbps
NGFW Throughput : 4 Gbps
Threat Protection Throughput : 3 Gbps

System Performance and Capacity:
IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP):36 / 36 / 22 Gbps
IPv6 Firewall Throughput(1518 / 512 / 86 byte, UDP):36 / 36 / 22 Gbps
Firewall Latency (64 byte, UDP) : 3 ?s
Firewall Throughput (Packet per Second) : 33 Mpps
Concurrent Sessions (TCP) : 5 Million
New Sessions/Second (TCP) : 280,000
Firewall Policies : 10,000
IPsec VPN Throughput (512 byte) : 20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 2,000
Client-to-Gateway IPsec VPN Tunnels : 50,000
SSL-VPN Throughput : 2.2 Gbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 5,000
SSL Inspection Throughput (IPS, avg. HTTPS) : 3.9 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) : 2,400
SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 380,000
Application Control Throughput (HTTP 64K) : 9 Gbps
CAPWAP Throughput (1444 byte, UDP) : 5.5 Gbps
Virtual Domains (Default / Maximum) : 10 / 10
Maximum Number of FortiSwitches Supported : 64
Maximum Number of FortiAPs (Total / Tunnel) : 1024 / 512
Maximum Number of FortiTokens : 5,000
High Availability Configurations : Active-Active, Active-Passive, Clustering

Dimensions and Power:
Height x Width x Length (inches) : 1.75 x 17.0 x 16.4
Height x Width x Length (mm): 44.45 x 432 x 416
Weight : 19.0 lbs (8.6 kg)
Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU
Wall Mountable : No
Power Input : 100–240V AC, 50–60 Hz
Power Consumption (Average / Maximum) : 128 W / 187 W
Current (Maximum) : 110V/7A, 220V/3.5A
Heat Dissipation : 636 BTU/h
Redundant Power Supplies (Hot Swappable) optional

Operating Environment and Certifications:
Operating Temperature : 32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Humidity : 10–90% non-condensing
Noise Level : 55 dBA
Operating Altitude Up to : 7,400 ft (2,250 m)
Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
Call for Best Price
Fortinet FortiGate 60E Series
Fortinet FortiGate 60E Series showroom in chennai, velachery, anna nagar, tamilnadu
  • Brand: Fortinet
  • Model: FortiGate-60E
  • Item Weight: 1.74 Kg
  • Package Dimensions: 30.5 x 21.1 x 12.2 cm
  • Item model number: FortiGate 60E
  • Batteries Included: No
  • Batteries Required: No
Call for Best Price
Fortinet FortiGate 80E Series
Fortinet FortiGate 80E Series showroom in chennai, velachery, anna nagar, tamilnadu
  • Brand: Fortinet
  • Model: FG-80E-BDL
  • Item Weight: 1.2 Kg
  • Product Dimensions: 17.8 x 21.6 x 4.2 cm
  • Item model number: FG-80E-BDL
  • Operating System: None
  • Colour Screen: No
  • Wattage: 20 Watts
  • Batteries Included: No
  • Batteries Required: No
  • Wireless Type: 802.11abg
Call for Best Price

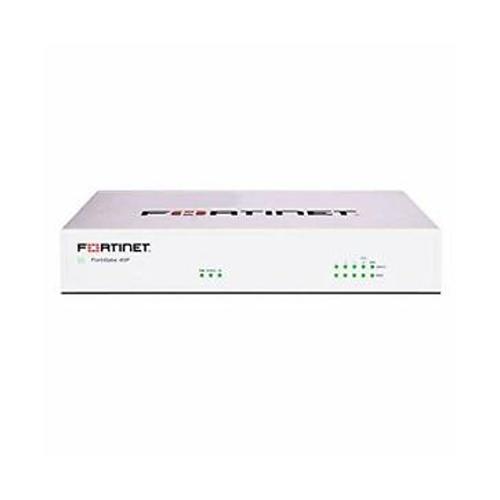

Fortinet FortiGate 40F Firewall
Fortinet FortiGate 40F Firewall showroom in chennai, velachery, anna nagar, tamilnadu
  • Firewall Throughput (1518/512/64 byte UDP): 5 / 5 / 5 Gbps
  • IPsec VPN Throughput (512 byte) 1: 4.4 Gbps
  • IPS Throughput (Enterprise Mix) 2: 1 Gbps
  • NGFW Throughput (Enterprise Mix) 2, 4: 800 Mbps
  • Threat Protection Throughput (Ent. Mix) 2, 5: 600 Mbps
  • Firewall Latency: 4 µs
  • Concurrent Sessions: 700,000
  • New Sessions/Sec: 35,000 Firewall Policies :5,000
  • Max G/W to G/W IPSEC Tunnels: 200
  • Max Client to G/W IPSEC Tunnels: 250
  • SSL VPN Throughput: 490 Mbps
  • Concurrent SSL VPN Users (Recommended Maximum, Tunnel Mode): 200
  • SSL Inspection Throughput (IPS, avg. HTTPS) 3: 310 Mbps
  • Application Control Throughput (HTTP 64K) 2: 990 Mbps
  • Max FortiAPs (Total / Tunnel): 10 / 5
  • Max FortiSwitches: 8
  • Max FortiTokens: 500
  • Virtual Domains ( Default/Max): 10 / 10
  • Interfaces: 5x GE RJ45
  • Power Supplies: Single AC PS
  • Form Factor: Desktop
Call for Best Price
Fortinet FortiGate 30E Firewall
Fortinet FortiGate 30E Firewall showroom in chennai, velachery, anna nagar, tamilnadu
  • Firewall Throughput (1518/512/64 byte UDP): 0.95 Gbps
  • IPsec VPN Throughput (512 byte) 1: 75 Mbps
  • IPS Throughput (Enterprise Mix) 2: 300 Mbps
  • NGFW Throughput (Enterprise Mix) 2, 4: 200 Mbps
  • Threat Protection Throughput (Ent. Mix) 2, 5: 150 Mbps
  • Firewall Latency: 130 µs
  • Concurrent Sessions: 900,000
  • New Sessions/Sec: 15000
  • Firewall Policies: 5000
  • Max G/W to G/W IPSEC Tunnels: 200
  • Max Client to G/W IPSEC Tunnels: 250
  • SSL VPN Throughput: 35 Mbps
  • Concurrent SSL VPN Users (Recommended Maximum, Tunnel Mode): 100
  • SSL Inspection Throughput (IPS, avg. HTTPS) 3: 125 Mbps
  • Application Control Throughput (HTTP 64K) 2: 400 Mbps
  • Max FortiAPs (Total / Tunnel): 2 / 2
  • Max FortiSwitches: 8
  • Max FortiTokens: 500
  • Virtual Domains ( Default/Max):    5 / 5
  • Interfaces: 5x GE RJ45
  • Power Supplies: Single AC PS
  • Form Factor: Desktop
  • Variants: WiFi, 3G4G, LENC
Call for Best Price
FORTIGATE 50E FIREWALL
FORTIGATE 50E FIREWALL showroom in chennai, velachery, anna nagar, tamilnadu
The Fortinet Enterprise Firewall Solution :
The FortiGate 100E series delivers next generation firewall capabilities for mid-sized to
large enterprises, with the flexibility to be deployed at the campus or enterprise branch.
Protect against cyber threats with security processor powered high performance, security
efficacy and deep visibility.

Security :
Protects against known exploits, malware and malicious websites using continuous
threat intelligence provided by FortiGuard Labs security services
Identify thousands of applications including cloud applications for deep inspection into network traffic
Detects unknown attacks using dynamic analysis and provides automated mitigation to stop targeted attacks

Performance :
Delivers industry’s best threat protection performance and ultra-low latency using
purpose built-security processor (SPU) technology
Provides industry-leading performance and protection for SSL encrypted traffic

Networking :
Delivers an extensive routing, switching, wireless controller and high performance IPsec

VPN capabilities to consolidate networking and security functionality
Enables flexible deployment such as Next Generation Firewall and Secure SD-WAN
Call for Best Price
