- FORTIGATE 60E
- Hardware Specifications :
- GE RJ45 WAN / DMZ Ports : 2 / 1
- GE RJ45 Internal Ports : 7
- GE RJ45 PoE/+ Ports : 0
- Wireless Interface : 0
- USB Ports : 1
- Console (RJ45 ) : 1
- Internal Storage : 0
- FORTIGATE 60E-POE
- Hardware Specifications :
- GE RJ45 WAN / DMZ Ports : 2
- GE RJ45 Internal Ports : 0
- GE RJ45 PoE/+ Ports : 8
- Wireless Interface : 0
- USB Ports : 1
- Console (RJ45) : 1
- Internal Storage : 0
- FORTIWIFI 60E
- Hardware Specifications :
- GE RJ45 WAN / DMZ Ports :2 / 1
- GE RJ45 Internal Ports : 7
- GE RJ45 PoE/+ Ports : 0
- Wireless Interface : 802.11 a/b/g/n/ac
- USB Ports : 1
- Console (RJ45) : 1
- Internal Storage : 0
- FORTIGATE 61E
- Hardware Specifications :
- GE RJ45 WAN / DMZ Ports : 2 / 1
- GE RJ45 Internal Ports : 7
- GE RJ45 PoE/+ Ports : 0
- Wireless Interface : 0
- USB Ports : 1
- Console (RJ45) : 1
- Internal Storage : 1x 128 GB SSD
- FORTIWIFI 61E
- Hardware Specifications :
- GE RJ45 WAN / DMZ Ports : 2 / 1
- GE RJ45 Internal Ports : 7
- GE RJ45 PoE/+ Ports : 0
- Wireless Interface : 802.11 a/b/g/n/ac
- USB Ports : 1
- Console (RJ45) : 1
- Internal Storage : 1x 128 GB SSD
- System Performance — Enterprise Traffic Mix :
- IPS Throughput : 400 Mbps
- NGFW Throughput : 250 Mbps
- Threat Protection Throughput : 200 Mbps
- System Performance:
- Firewall Throughput (1518 / 512 / 64 byte UDP packets) : 3 / 3 / 3 Gbps
- Firewall Latency (64 byte UDP packets) : 3 ?s
- Firewall Throughput (Packets Per Second) : 4.5 Mpps
- Concurrent Sessions (TCP) : 1.3 Million
- New Sessions/Second (TCP) : 30,000
- Firewall Policies : 5,000
- IPsec VPN Throughput (512 byte) : 2 Gbps
- Gateway-to-Gateway IPsec VPN Tunnels : 200
- Client-to-Gateway IPsec VPN Tunnels : 500
- SSL-VPN Throughput : 150 Mbps
- Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 200
- SSL Inspection Throughput (IPS, avg. HTTPS) : 135 Mbps
- SSL Inspection CPS (IPS, avg. HTTPS) : 135
- SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 75,000
- Application Control Throughput (HTTP 64K) : 650 Mbps
- CAPWAP Throughput (HTTP 64K) : 890 Mbps
- Virtual Domains (Default / Maximum) : 10 / 10
- Maximum Number of FortiSwitches Supported : 16
- Maximum Number of FortiAPs (Total / Tunnel Mode) : 30 / 10
- Maximum Number of FortiTokens : 500
- High Availability Configurations : Active / Active, Active / Passive, Clustering
- Dimensions
- Height x Width x Length (inches) 1.5 x 8.5 x 6.3
- Height x Width x Length (mm) 38 x 216 x 160
- Weight 1.9 lbs (0.9 kg)
- Form Factor : Desktop
- Hardware Specifications
- GE RJ45 Switch Ports : 5
- GE RJ45 WAN Ports : 2
- USB Ports : 1
- Console (RJ45) : 1
- System Performance — Enterprise Traffic Mix :
- IPS Throughput : 350 Mbps
- NGFW Throughput : 220 Mbps
- Threat Protection Throughput : 160 Mbps
- System Performance :
- Firewall Throughput : 2.5 Gbps
- Firewall Latency (64 byte UDP packets) : 180 ?s
- Firewall Throughput (Packets Per Second): 375 Kpps
- Concurrent Sessions (TCP) : 1.8 Million
- New Sessions/Second (TCP) : 21,000
- Firewall Policies : 5,000
- IPsec VPN Throughput (512 byte) : 90 Mbps
- Gateway-to-Gateway IPsec VPN Tunnels : 200
- Client-to-Gateway IPsec VPN Tunnels : 250
- SSL-VPN Throughput : 100 Mbps
- Concurrent SS-VPN Users (Recommended Maximum, Tunnel Mode) : 200
- SSL Inspection Throughput (IPS, avg. HTTPS) : 150 Mbps
- SSL Inspection CPS (IPS, avg. HTTPS) : 140
- SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 75,000
- Application CoLntrol Throughput (HTTP 64K) : 450 Mbps
- CAPWAP Throughput (HTTP 64K) : 1.2 Gbps
- Virtual Domains (Default / Maximum) : 5 / 5
- Maximum Number of FortiSwitches Supported : 8
- Maximum Number of FortiAPs (Total / Tunnel Mode) : 10 / 5
- Maximum Number of FortiTokens : 500
- High Availability Configurations : Active/Active, Active/Passive, Clustering
- Dimensions :
- Height x Width x Length (inches) : 1.44 x 8.52 x 5.5
- Height x Width x Length (mm) : 36.5 x 216 x 140
- Weight : 2.015 lbs(0.914 kg)
- Form Factor : Desktop

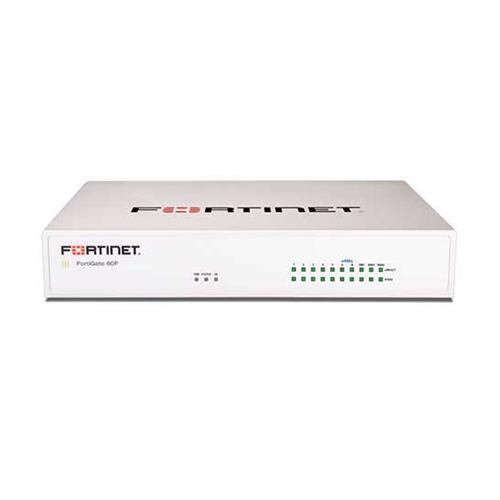

- FORTIGATE 60F
- Hardware Specifications :
- GE RJ45 WAN / DMZ Ports : 2 / 1
- GE RJ45 Internal Ports : 7
- GE RJ45 FortiLink Ports : 2
- Wireless Interface : 0
- USB Ports : 1
- Console (RJ45) : 1
- Internal Storage : 0
- FORTIGATE 61F
- Hardware Specifications
- GE RJ45 WAN / DMZ Ports : 2 / 1
- GE RJ45 Internal Ports : 7
- GE RJ45 FortiLink Ports : 2
- Wireless Interface : 0
- USB Ports : 1
- Console (RJ45) : 1
- Internal Storage : 1 x 128 GB SSD
- FORTIWIFI 60F
- Hardware Specifications
- GE RJ45 WAN / DMZ Ports : 2 / 1
- GE RJ45 Internal Ports 7
- GE RJ45 FortiLink Ports 2
- Wireless Interface : 802.11 a/b/g/n/ac-W2
- USB Ports : 1
- Console (RJ45) : 1
- Internal Storage : 0
- FORTIWIFI 61F
- Hardware Specifications
- GE RJ45 WAN / DMZ Ports : 2 / 1
- GE RJ45 Internal Ports : 7
- GE RJ45 FortiLink Ports : 2
- Wireless Interface : 802.11 a/b/g/n/ac-W2
- USB Ports : 1
- Console (RJ45) : 1
- Internal Storage : 1 x 128 GB SSD
- System Performance — Enterprise Traffic Mix :
- IPS Throughput : 1.4 Gbps
- NGFW Throughput : 1 Gbps
- Threat Protection Throughput : 700 Mbps
- System Performance :
- Firewall Throughput(1518 / 512 / 64 byte UDP packets) : 10/10/6 Gbps
- Firewall Latency (64 byte UDP packets) : 4 ?s
- Firewall Throughput (Packets Per Second) : 9 Mpps
- Concurrent Sessions (TCP) : 700,000
- New Sessions/Second (TCP) : 35,000
- Firewall Policies : 5,000
- IPsec VPN Throughput (512 byte) : 6.5 Gbps
- Gateway-to-Gateway IPsec VPN Tunnels : 200
- Client-to-Gateway IPsec VPN Tunnels : 500
- SSL-VPN Thro 9ughput :00 Mbps
- Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 200
- SSL Inspection Throughput(IPS, avg. HTTPS) : 750 Mbps
- SSL Inspection CPS (IPS, avg. HTTPS) : 400
- SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 55,000
- Application Control Throughput (HTTP 64K) : 1.8 Gbps
- CAPWAP Throughput (HTTP 64K) : 8 Gbps
- Virtual Domains (Default / Maximum) : 10 / 10
- Maximum Number of FortiSwitches Supported : 16
- Maximum Number of FortiAPs (Total / Tunnel Mode) : 30 / 10
- Maximum Number of FortiTokens : 500
- High Availability Configurations : Active / Active, Active / Passive, Clustering
- Dimensions :
- Height x Width x Length (inches) : 1.5 x 8.5 x 6.3
- Height x Width x Length (mm) : 38.5 x 216 x 160 mm
- Weight : 2.23 lbs (1.01 kg)
- Form Factor : Desktop
- Brand: Fortinet
- Model: FortiGate-60E
- Item Weight: 1.74 Kg
- Package Dimensions: 30.5 x 21.1 x 12.2 cm
- Item model number: FortiGate 60E
- Batteries Included: No
- Batteries Required: No
- Brand: Fortinet
- Model: FG-80E-BDL
- Item Weight: 1.2 Kg
- Product Dimensions: 17.8 x 21.6 x 4.2 cm
- Item model number: FG-80E-BDL
- Operating System: None
- Colour Screen: No
- Wattage: 20 Watts
- Batteries Included: No
- Batteries Required: No
- Wireless Type: 802.11abg
- Firewall Throughput (1518/512/64 byte UDP): 5 / 5 / 5 Gbps
- IPsec VPN Throughput (512 byte) 1: 4.4 Gbps
- IPS Throughput (Enterprise Mix) 2: 1 Gbps
- NGFW Throughput (Enterprise Mix) 2, 4: 800 Mbps
- Threat Protection Throughput (Ent. Mix) 2, 5: 600 Mbps
- Firewall Latency: 4 µs
- Concurrent Sessions: 700,000
- New Sessions/Sec: 35,000 Firewall Policies :5,000
- Max G/W to G/W IPSEC Tunnels: 200
- Max Client to G/W IPSEC Tunnels: 250
- SSL VPN Throughput: 490 Mbps
- Concurrent SSL VPN Users (Recommended Maximum, Tunnel Mode): 200
- SSL Inspection Throughput (IPS, avg. HTTPS) 3: 310 Mbps
- Application Control Throughput (HTTP 64K) 2: 990 Mbps
- Max FortiAPs (Total / Tunnel): 10 / 5
- Max FortiSwitches: 8
- Max FortiTokens: 500
- Virtual Domains ( Default/Max): 10 / 10
- Interfaces: 5x GE RJ45
- Power Supplies: Single AC PS
- Form Factor: Desktop
- Firewall Throughput (1518/512/64 byte UDP): 0.95 Gbps
- IPsec VPN Throughput (512 byte) 1: 75 Mbps
- IPS Throughput (Enterprise Mix) 2: 300 Mbps
- NGFW Throughput (Enterprise Mix) 2, 4: 200 Mbps
- Threat Protection Throughput (Ent. Mix) 2, 5: 150 Mbps
- Firewall Latency: 130 µs
- Concurrent Sessions: 900,000
- New Sessions/Sec: 15000
- Firewall Policies: 5000
- Max G/W to G/W IPSEC Tunnels: 200
- Max Client to G/W IPSEC Tunnels: 250
- SSL VPN Throughput: 35 Mbps
- Concurrent SSL VPN Users (Recommended Maximum, Tunnel Mode): 100
- SSL Inspection Throughput (IPS, avg. HTTPS) 3: 125 Mbps
- Application Control Throughput (HTTP 64K) 2: 400 Mbps
- Max FortiAPs (Total / Tunnel): 2 / 2
- Max FortiSwitches: 8
- Max FortiTokens: 500
- Virtual Domains ( Default/Max): 5 / 5
- Interfaces: 5x GE RJ45
- Power Supplies: Single AC PS
- Form Factor: Desktop
- Variants: WiFi, 3G4G, LENC
