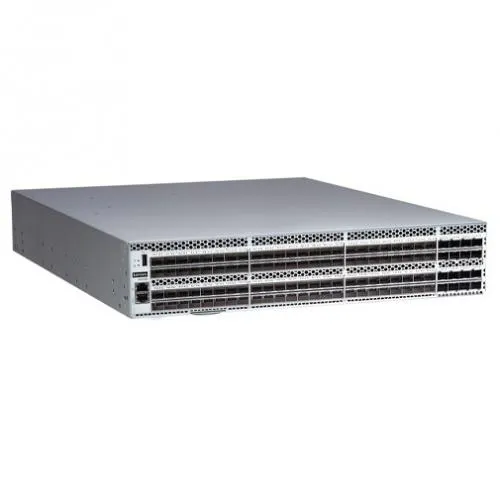

Lenovo ThinkSystem DB730S SAN Fibre Channel Switch

Brand Name: Lenovo

Product Name: Lenovo ThinkSystem DB730S FC SAN Switch

Machine type:7D9J

System Architecture:

Fibre Channel Ports:

128 ports (96 64G SFP+ ports, plus 16 2x64G SFP-DD ports), each supporting E_Ports, F_Ports, M_Ports, D_Ports, and EX_Ports.

48-port base configuration; additional ports are enabled with two 24-port SFP+ PODs (Ports on Demand), plus a 32-port SFP-DD POD (16 2x64G SFP-DD transceivers), scaling the switch from 48 ports to 128 ports. The SFP+ ports are capable of auto-negotiating to 8, 16, 32, or 64G speeds depending on the SFP+ model and the minimum supported speed of the optical transceiver at the other end of the link.

Scalability:Full-fabric architecture with a maximum of 239 switches

Performance:Non-blocking architecture with wire-speed forwarding of traffic:

8GFC: 8.5 Gb/s line speed, full duplex

10GFC: 10.53 Gb/s line speed, full duplex; 10Gb/s optionally programmable to fixed port speed.

16GFC: 14.025 Gb/s line speed, full duplex

32GFC: 28.05 Gb/s line speed, full duplex

64GFC: 57.8 Gb/s line speed, full duplex

Port types:

D_Port (ClearLink Diagnostic Port), E_Port, EX_Port, F_Port, M_Port

Optional port-type control

Data traffic types:Fabric switches supporting unicast

Media types:

64G: Brocade Secure hot-pluggable SFP-DD, SN connector; 64 Gb/s SWL.

64G: Brocade Secure hot-pluggable SFP+, LC connector; 64 Gb/s SWL, LWL 10 km.

32G: Brocade Secure hot-pluggable SFP+, LC connector; 32 Gb/s SWL, LWL 10 km, ELWL 25 km.

10G: Brocade Secure hot-pluggable SFP+, LC connector; 10 Gb/s SWL, LWL 10 km.

Fibre Channel distance is subject to fiber-optic cable and port speed.

USB port:One standard USB port for firmware download, SupportSave, and configuration upload or download.

Power supplies:Dual, hot-swappable, redundant power supplies with integral cooling fans and status LEDs. 80 Plus Gold.

Management:Brocade Advanced Web Tools; Brocade SANnav Management Portal and SANnav Global View; Command Line Interface (CLI); EZSwitchSetup; HTTP/HTTPS; RESTful API; SNMP v1/v3 (FE MIB, FC Management MIB); SSH.

Enclosure:

Front-to-back airflow; non-port-side exhaust; power from back, 2U

Back-to-front airflow; non-port-side intake; power from back, 2U

Warranty:Three-year customer-replaceable unit limited warranty with 9x5 next business day parts delivered. Three-year software/firmware entitlement.
