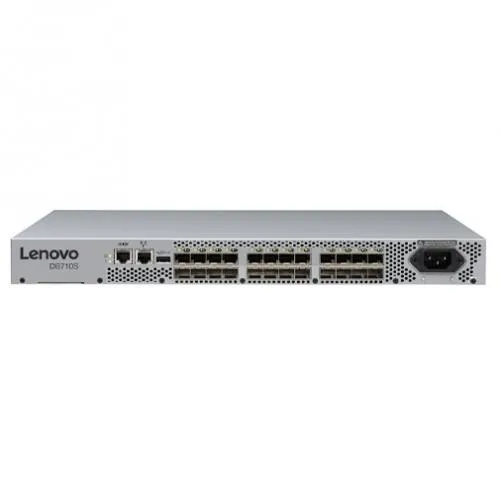

Lenovo ThinkSystem DB710S Fibre Channel Switch

Brand Name: Lenovo

Product Name: Lenovo ThinkSystem DB710S SAN Switch

Machine type:7DHN (Lifetime warranty)

System Architecture:

Fibre Channel Ports:

Switch mode (default): 24 ports 64G SFP+ ports, each supporting E_Ports, F_Ports, M_Ports, D_Ports, and EX_Ports.

8-port base configuration: additional ports are enabled with two 8-port SFP+ PODs (Ports on Demand), scaling the switch from 8 ports to 24 ports.

Brocade Access Gateway default port mapping: 16 F_Ports, 8 N_Ports.

Scalability:Full-fabric architecture with a maximum of 239 switches

Performance:

Fibre Channel:

8.5GB/s line speed, full duplex

14.025Gb/s line speed, full duplex

28.05Gb/s line speed, full duplex

57.8Gb/s line speed, full duplex

Auto-sensing of 8, 16, 32, and 64G port speeds

Port types:

F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostic Port) on 24 SFP+ ports

Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port

Media types:

64G FC SFP+ LC connector: SWL, LWL. Auto negotiates to 64, 32, 16G

32G FC SFP+ LC connector: SWL, LWL, ELWL. Auto negotiates to 32, 16, 8G

All Brocade transceivers are PC/UPC compatible

Management:Brocade Advanced Web Tools; Brocade SANnav Management Portal and SANnav Global View; Command Line Interface (CLI); HTTP/HTTPS; RESTful API; SNMP v1/v3 (FE MIB, FC Management MIB); SSH

Operating Environment:Temperature: 0°C to 40°C (32°F to 104°F)

Humidity: 10% to 85% (non-condensing)

Power Supply:Base switch includes a single, fixed power supply with four integrated system cooling fans

Service and support:Optional service upgrades are available through Lenovo Services: 9x5 next business day onsite response, 24x7 2-hour or 4-hour onsite response, 24x7 6-hour or 24-hour committed service repair, up to 5 years of warranty coverage, 1-year or 2-year post-warranty extensions, and Basic Hardware Installation Services.

Dimensions:

Width: 42.88 cm (16.88 in.)

Height: 4.29 cm (1.69 in.)

Depth: 30.66 cm (12.07 in.)
