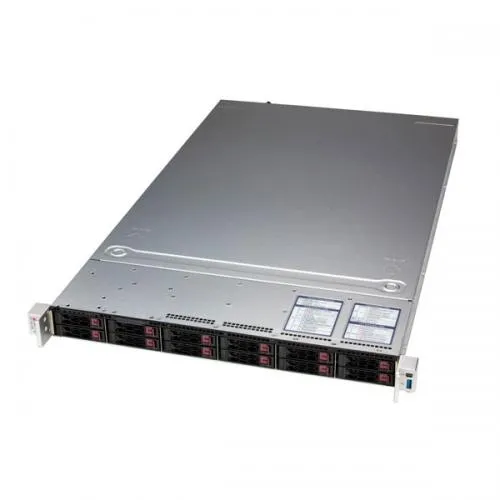

Supermicro CloudDC Super SYS 121C TN2R 1U Rack Server

Brand: Supermicro

Model No: CloudDC Super SYS 121C TN2R Server

Form Factor: 1U Rackmount Enclosure: 437 x 43 x 597mm (17.2" x 1.7" x 23.5") Package: 605 x 197 x 822mm (23.8" x 7.8" x 32.4")

Processor: Dual Socket E (LGA-4677) 5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors Up to 36C/72T; Up to 82.5MB Cache per CPU

GPU: Max GPU Count: Up to 2 single-width GPUs Supported GPU: NVIDIA PCIe: L4, A2 Intel PCIe: Intel Data Center GPU Flex 140

System Memory: Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

Drive Bays: Configuration Default: Total 8 bays

Expansion Slots: Default 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)

Input / Output: LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 2 USB 3.2 Gen1 Type-A ports(rear) Video: 1 VGA port Serial: 1 COM port(Rear) TPM: 1 TPM header

System Cooling: Fans: Up to 6x 4cm heavy duty fans with optimal fan speed control Air Shroud: 2 Air Shrouds

Power Supply: 2x 860W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies

Color: Black front & silver body

Dimensions and Weight: Weight: Gross Weight: 40 lbs (18.1 kg)
