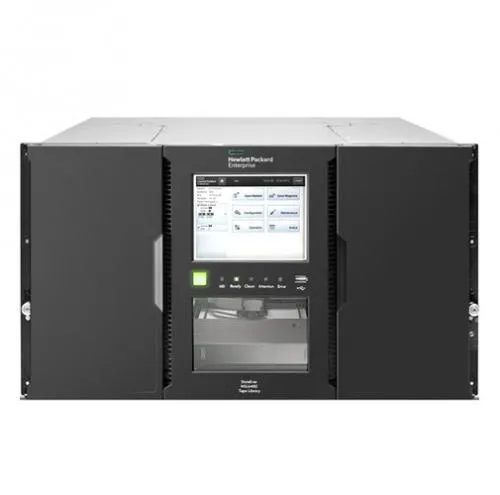

HPE StoreEver MSL6480 Scalable Base Module

Drive type: LTO-9 Ultrium 45000

LTO-8 Ultrium 30750

LTO-7 Ultrium 15000

Available with SAS or Fibre Channel interfaces

Capacity: 45TB starting 25.2PB maximum Assumes use of LTO-9 with 2.5:1 data compression

Transfer rate: 113.4 TB/hr maximum, compressed

Number of cartridge slots: 80 slots per 6U module, scale from 80 to 560 slots in a fully expanded HPE Storage MSL6480 Tape Library

Maximum drives per enclosure: 6

Host interface: 8 Gb/s Fibre Channel

6 Gb/s SAS (LTO-6, LTO-7, LTO-8)

12 Gb/s SAS (LTO-9)

Encryption capability: AES 256-bit

Form factor: 6U per module to a maximum of 42U

Warranty: 1-year parts, 1-year labor, 1-year onsite support coverage.

Weight: The weight of each library varies somewhat based on the type and number of LTO tape drives and LTO media contained in the configuration (The weight of each library varies somewhat based on the type and number of LTO tape drives and LTO media contained in the configuration)

Dimensions: 26.8 x 47.5 x 89.2 cm (10.55 x 18.7 x 35.1 in)
