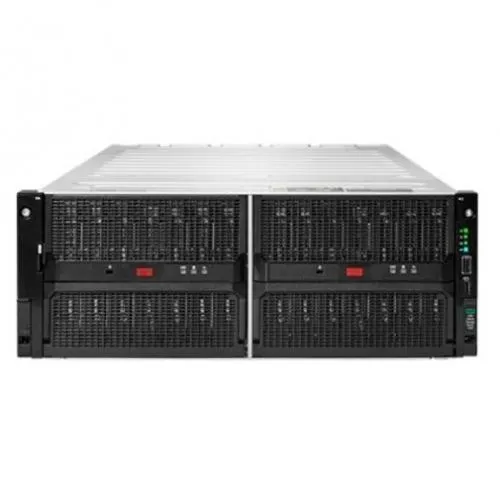

HP Alletra 4120 Rackmount Storage Server

Form factor:4U rack mount

Front drive bays:68 LFF SAS/SATA drives of 92 LFF SAS/SATA drives

Rear drive bays:Optional 8 E3.S 1Y Gen5 NVMe or 4 SFF Gen4 NVMe U.3 SSDs

Dedicated boot device:Optional hardware mirrored dual M.2 NVMe SSDs or direct attached dual M.2 NVMe SSDs

Storage controller:1 or 2 32-port with 8 GB cache (consume expansion slots) and optional Intel Virtual RAID on CPU (Intel VROC)

Network controller:Up to 2 PCIe full-height half-length and 2 OCP 3.0 controllers, up to 100 Gb/s 2-port (consume expansion slots)

Expansion slots:Up to 4 full-height half-length PCIe Gen5 slots and 2 OCP 3.0 slots with 2 processors installed

Memory slots:24 DDR5 memory slots (12 per processor) for 1.5 TB maximum

Processor family:Single or dual 4th generation Intel® Xeon® Scalable processors

Power specifications:4 HPE Flexible Slot (Flex Slot) Power Supplies of up to 2200W per Power Supply

System cooling:6 hot-pluggable system quad-fan modules with N+1 rotor redundancy

Security:TPM 2.0, iDevID, Silicon Root of Trust, logical Configuration Lock, Secure Boot, Secure Start, optional controller-based Secure Encryption, optional Self-Encrypting Drives, optional Secure Erase, logical Configuration Lock, optional drive drawer security locks, optional HPE Server Security Optimized Service

Infrastructure management:HPE iLO 6 Standard, HPE iLO 6 Advanced upgradable with license; HPE Compute Ops Management (subscription included) or optional HPE OneView (download required)

Warranty:3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.
