Graphtec CE8000 40 Desktop Vinyl Cutting Plotter Price in chennai, tamilnadu

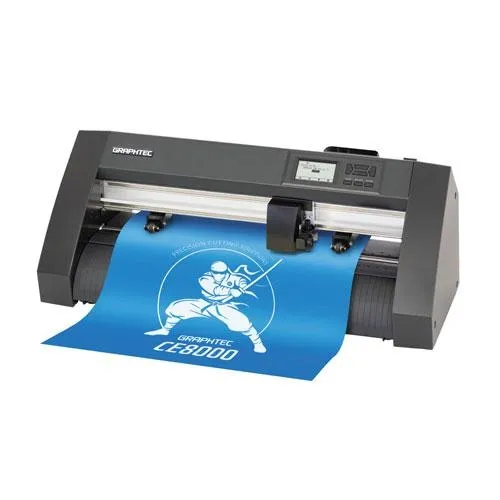

Graphtec CE8000 40 Desktop Vinyl Cutting Plotter
Graphtec CE8000 40 Desktop Vinyl Cutting Plotter dealers price chennai, tamil nadu
- Brand: Graphtec
- Model No: Graphtec CE8000 40 Cutting Plotter
- Cutter type: Grit rolling type
- Drive system: Digital servo drive
- Max. cutting area (W x L) (*1): 375mm × 50?
- Accuracy guaranteed cutting area (W x L)when using basket: 355mm × 2m
- Mountable media width: Min-50mm, Max-484mm (19inch)
- Mountable roll media weight: 5kg
- Number of push rollers: 2
- Max. cutting speed: 90cm/s (45°direction)
- Max. acceleration: 21.2m/s2 (45°direction)
- Cutting force: 4.41N (450gf)
- Min. Character size: Alphanumeric: approx. 5mm (varies depending on font and media)
- Mechanical step size: 0.005mm
- Programmable step size: GP-GL: 0.1 / 0.05 / 0.025 / 0.01mm, HP-GLTM (*2): 0.025mm
- Repeatability: Max. 0.1mm in plot up to 2m (Excluding media expansion and contraction)
- Installable number of tools: 1
- Blade types: Supersteel
- Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
- Media types: Max. 0.25mm thickness Marking film (PVC / fluorescent / reflective), *High intensity reflective sheet is not supported
- Interface: USB2.0 (Full Speed), Wireless LAN IEEE 802.11b/g/n, Ethernet 10 BASE-T/100BASE-TX (*3)
- Buffer memory: 2MB
- Command sets: GP-GL / HP-GLâ„¢ (Set by command or auto-detect)
- LCD display: Touch panel (240-dot × 128-dot)
- Power source: AC100-120V, AC200-240V, 50/60Hz (auto-switchover)
- Power consumption: Max. 140W
- Operating environment: 10 – 35? , 35 – 75? R.H. (non-condensing)
- Accuracy guaranteed environment: 16 – 32? , 35 – 70? R.H. (non-condensing)
- External dimensions(W x D x H)including stand: 677 x 289 x 266mm
