Lenovo Flex System EN2024 4 port 1Gb Ethernet Adapter
Lenovo Flex System EN2024 4 port 1Gb Ethernet Adapter showroom in chennai, velachery, anna nagar, tamilnadu
Abstract
The Flex System  EN2024 4-port 1Gb Ethernet Adapter is a quad-port Gigabit Ethernet network adapter. When it is combined with the Flex System EN2092 1Gb Ethernet Scalable Switch, clients can leverage an end-to-end 1 Gb solution on the Flex System Enterprise Chassis. The EN2024 adapter is based on the Broadcom 5718 controller and offers a PCIe 2.0 x1 host interface with MSI/MSI-X. It also supports I/O virtualization features like VMware NetQueue and Microsoft VMQ technologies.

Introduction
The Flex System  EN2024 4-port 1Gb Ethernet Adapter is a quad-port Gigabit Ethernet network adapter. When it is combined with the Flex System EN2092 1Gb Ethernet Scalable Switch, clients can leverage an end-to-end 1 Gb solution on the Flex System Enterprise Chassis. The EN2024 adapter is based on the Broadcom 5718 controller and offers a PCIe 2.0 x1 host interface with MSI/MSI-X. It also supports I/O virtualization features like VMware NetQueue and Microsoft VMQ technologies.

Features
  • The Flex System EN2024 4-port 1Gb Ethernet Adapter has these features:
  • Dual Broadcom BCM5718 ASICs
  • Quad-port Gigabit 1000BASE-X interface
  • Two PCI Express 2.0 x1 host interfaces, one per ASIC
  • Full-duplex (FDX) capability, enabling simultaneous transmission and reception of data on the Ethernet network
  • MSI and MSI-X capabilities, up to 17 MSI-X vectors
  • I/O virtualization support for VMware NetQueue, and Microsoft VMQ
  • Seventeen receive queues and 16 transmit queues
  • Seventeen MSI-X vectors supporting per-queue interrupt to host
  • Function Level Reset (FLR)
  • ECC error detection and correction on internal SRAM
  • TCP, IP, and UDP checksum offload
  • Large Send offload, TCP segmentation offload
  • Receive-side scaling
  • Virtual LANs (VLANs): IEEE 802.1q VLAN tagging
  • Jumbo frames (9 KB)
  • IEEE 802.3x flow control
  • Statistic gathering (SNMP MIB II, Ethernet-like MIB [IEEE 802.3x, Clause 30])
  • Comprehensive diagnostic and configuration software suite
  • ACPI 1.1a-compliant: multiple power modes
  • Wake-on-LAN (WOL) support
  • Preboot Execution Environment (PXE) support
  • RoHS-compliant
Call for Best Price
Lenovo Flex System FC3172 2 port 8Gb FC Adapter
Lenovo Flex System FC3172 2 port 8Gb FC Adapter showroom in chennai, velachery, anna nagar, tamilnadu
Abstract
The Flex System FC3172 2-port 8Gb FC Adapter enables high-speed access for Flex System compute nodes to connect to a Fibre Channel storage area network (SAN). This adapter is based on the proven QLogic 2532 8Gb ASIC design and works with the 8 Gb and 16 Gb Flex System Fibre Channel switches and pass-thru modules.

Change History
Changes in the November 26 update:
Updated the list of supported operating systems

Introduction
The Flex System FC3172 2 port 8Gb FC Adapter enables high-speed access for Flex System compute nodes to connect to a Fibre Channel storage area network (SAN). This adapter is based on the proven QLogic 2532 8Gb ASIC design and works with the 8 Gb and 16 Gb Flex System Fibre Channel switches and pass-thru modules.

Features
  • The Flex System FC3172 2-port 8Gb FC Adapter has the following features and specifications
  • QLogic ISP2532 controller
  • PCI Express 2.0 x4 host interface
  • Bandwidth: 8 Gb per second maximum at half-duplex and 16 Gb per second maximum at full-duplex per port
  • 8/4/2 Gbps auto-negotiation
  • Support for FCP SCSI initiator and target operation
  • Support for NPIV
  • Support for full-duplex operation
  • Support for Fibre Channel protocol SCSI (FCP-SCSI) and Fibre Channel Internet protocol (FCP-IP)
  • Support for point-to-point fabric connection (F-port fabric login)
  • Support for Fibre Channel Arbitrated Loop (FCAL) public loop profile: Fibre Loop-(FL-Port)-Port Login
  • Support for Fibre Channel services class 2 and 3
  • Configuration and boot support in UEFI
  • APIs supported: SNIA HBA API V2, SMI-S, FDMI
  • Support for Fabric Manager
  • Power usage: 3.7 W typical
  • RoHS 6 compliant
Call for Best Price
Lenovo Flex System FC3052 2 port 8Gb FC Adapter
Lenovo Flex System FC3052 2 port 8Gb FC Adapter showroom in chennai, velachery, anna nagar, tamilnadu
Abstract
The network architecture on the Flex System platform has been specifically designed to address network challenges, giving you a very scalable way to integrate, optimize and automate your data center. The Flex System™ FC3052 2-port 8Gb Fibre Channel Adapter enables high speed access for Flex System compute nodes to an external storage area network (SAN). This adapter is based on the proven Emulex Fibre Channel stack, and works with any of the 8 Gb or 16 Gb Flex System Fibre Channel switch and pass-thru modules.

Change History
Changes in the November 26 update:
Updated the list of supported operating systems

Introduction
The network architecture on the Flex System platform has been specifically designed to address network challenges, giving you a scalable way to integrate, optimize, and automate your data center. The Flex System™ FC3052 2-port 8Gb Fibre Channel Adapter enables high-speed access for Flex System compute nodes to an external storage area network (SAN). This adapter is based on the proven Emulex Fibre Channel stack, and works with any of the 8 Gb or 16 Gb Flex System Fibre Channel switch and pass-thru modules.

Features
  • The Flex System FC3052 2-port 8Gb FC Adapter has the following features and specifications:
  • Based on the Emulex "Saturn" 8Gb Fibre Channel I/O Controller (IOC) chip
  • Multifunction PCIe 2.0 device with two independent FC ports
  • Auto-negotiation between 2-Gbps, 4-Gbps, or 8-Gbps FC link attachments
  • Complies with the PCIe base and CEM 2.0 specifications
  • Enablement of high-speed and dual-port connection to a Fibre Channel SAN
  • Comprehensive virtualization capabilities with support for N_Port ID Virtualization (NPIV) and Virtual Fabric
  • Simplified installation and configuration using common HBA drivers
  • Common driver model that eases management and enables upgrades independent of HBA firmware

Warranty
The adapter has a 1-year limited warranty. When installed on an Flex System Compute Node, the adapter assumes the system’s base warranty and any Lenovo warranty service upgrade.
Call for Best Price
Lenovo Flex System FC5172 2 port 16Gb FC Adapter
Lenovo Flex System FC5172 2 port 16Gb FC Adapter showroom in chennai, velachery, anna nagar, tamilnadu
Abstract
  • The Flex System FC5172 2-port 16Gb FC Adapter enables high-speed access for Flex System compute nodes to connect to a Fibre Channel storage area network (SAN). This adapter is based on the proven QLogic 16Gb ASIC design and works with the 8 Gb and 16 Gb Flex System Fibre Channel switches and pass-thru modules.
  • This product guide provides essential presales information to understand the QLogic 16Gb FC adpater and its key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about FC5172 adapter and consider its use in IT solutions.

Change History
Changes in the November 26 update:
Updated the list of supported operating systems

Introduction
The Flex System FC5172 2-port 16Gb FC Adapter enables high-speed access for Flex System compute nodes to connect to a Fibre Channel storage area network (SAN). This adapter is based on the proven QLogic 16Gb ASIC design and works with the 8 Gb and 16 Gb Flex System Fibre Channel switches and pass-thru modules.
Call for Best Price
Emulex 16Gb Fibre Channel Adapters for Lenovo Flex System
Emulex 16Gb Fibre Channel Adapters for Lenovo Flex System showroom in chennai, velachery, anna nagar, tamilnadu
Abstract
The Emulex 16Gb Fibre Channel Adapter family for Lenovo Flex System enables the highest FC speed access for Flex System compute nodes to an external storage area network (SAN). The adapters described here are the Emulex LPm16002B-L and LPm16004B-L Mezz Adapters and the Flex System FC5052 and FC5054 Adapters. These adapters are based on the proven Emulex Fibre Channel stack, and work with 16 Gb Flex System Fibre Channel switch modules.

Change History
Changes in the Novmeber 26 update:
Updated the list of supported operating systems

Introduction
  • The Emulex 16Gb Fibre Channel Adapter family for Lenovo Flex System enables the highest FC speed access for Flex System compute nodes to an external storage area network (SAN). These adapters are based on the proven Emulex Fibre Channel stack, and work with 16 Gb Flex System Fibre Channel switch modules.
  • As the only 4-port HBAs for Flex System and ThinkSystem respectively, the FC5054 and LPm16004B-L provide unmatched scalability and redundancy. In addition, these two 4-port adapters have two separate ASICs with no bridge chip, so data flows directly to an independent PCIe bus for high availability without a single point of failure.
Call for Best Price
Lenovo Flex System CN4058S and CN4052 10Gb Virtual Fabric Adapters
Lenovo Flex System CN4058S and CN4052 10Gb Virtual Fabric Adapters showroom in chennai, velachery, anna nagar, tamilnadu
Abstract
The Flex System CN4058S 8-port 10Gb Virtual Fabric Adapter and CN4052 2-port 10Gb Virtual Fabric Adapter are part of the VFA5 family of System x and Flex System adapters. These adapter supports up to four virtual NIC (vNIC) devices per port (for a total of 32 for the CN4058S and 8 for the CN4052), where each physical 10 GbE port can be divided into four virtual ports with flexible bandwidth allocation. These adapters also feature RDMA over Converged Ethernet (RoCE) capability, and support iSCSI, and FCoE protocols with the addition of a Features on Demand (FoD) license upgrade.

Introduction
  • The Flex System CN4058S 8-port 10Gb Virtual Fabric Adapter and CN4052 2-port 10Gb Virtual Fabric Adapter are part of the VFA5 family of System x and Flex System adapters. These adapter supports up to four virtual NIC (vNIC) devices per port (for a total of 32 for the CN4058S and 8 for the CN4052), where each physical 10 GbE port can be divided into four virtual ports with flexible bandwidth allocation. These adapters also feature RDMA over Converged Ethernet (RoCE) capability, and support iSCSI, and FCoE protocols with the addition of a Features on Demand (FoD) license upgrade.
  • With hardware protocol offloads for TCP/IP and FCoE, the CN4058S and CN4052 provides maximum bandwidth with minimum use of CPU resources and enables more VMs per server, which provides greater cost saving to optimize return on investment. With up to eight ports, the CN4058S in particular makes full use of the capabilities of all supported Ethernet switches in the Flex System portfolio.
Call for Best Price
Lenovo Mellanox ConnectX 3 and IB6132 2 port FDR InfiniBand Adapters for Flex System
Lenovo Mellanox ConnectX 3 and IB6132 2 port FDR InfiniBand Adapters for Flex System showroom in chennai, velachery, anna nagar, tamilnadu
Abstract
  • The Flex System IB6132 2-port FDR InfiniBand Adapter and Mellanox ConnectX-3 Mezz FDR 2-Port InfiniBand Adapter deliver low latency and high bandwidth for performance-driven server clustering applications in enterprise data centers, high-performance computing (HPC), and embedded environments. The adapters are designed to operate at InfiniBand FDR speeds (56 Gbps or 14 Gbps per lane).
  • This product guide provides essential presales information to understand the Mellanox adapters and their key features, specifications and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.

Introduction
  • The Flex System IB6132 2-port FDR InfiniBand Adapter and Mellanox ConnectX-3 Mezz FDR 2-Port InfiniBand Adapter deliver low latency and high bandwidth for performance-driven server clustering applications in enterprise data centers, high-performance computing (HPC), and embedded environments. The adapter is designed to operate at InfiniBand FDR speeds (56 Gbps or 14 Gbps per lane).
  • Clustered databases, parallelized applications, transactional services, and high-performance embedded I/O applications potentially achieve significant performance improvements, helping to reduce completion time and lower the cost per operation. These Mellanox ConnectX-3 adapters simplify network deployment by consolidating clustering, communications, and management I/O, and helps provide enhanced performance in virtualized server environments.
Call for Best Price
Lenovo Emulex 16Gb Fibre Channel Adapters for Lenovo Flex System
Lenovo Emulex 16Gb Fibre Channel Adapters for Lenovo Flex System showroom in chennai, velachery, anna nagar, tamilnadu
Abstract
The Emulex 16Gb Fibre Channel Adapter family for Lenovo Flex System enables the highest FC speed access for Flex System compute nodes to an external storage area network (SAN). The adapters described here are the Emulex LPm16002B-L and LPm16004B-L Mezz Adapters and the Flex System FC5052 and FC5054 Adapters. These adapters are based on the proven Emulex Fibre Channel stack, and work with 16 Gb Flex System Fibre Channel switch modules.

Change History
Changes in the Novmeber 26 update:
Updated the list of supported operating systems

Introduction
  • The Emulex 16Gb Fibre Channel Adapter family for Lenovo Flex System enables the highest FC speed access for Flex System compute nodes to an external storage area network (SAN). These adapters are based on the proven Emulex Fibre Channel stack, and work with 16 Gb Flex System Fibre Channel switch modules.
  • As the only 4-port HBAs for Flex System and ThinkSystem respectively, the FC5054 and LPm16004B-L provide unmatched scalability and redundancy. In addition, these two 4-port adapters have two separate ASICs with no bridge chip, so data flows directly to an independent PCIe bus for high availability without a single point of failure.
Call for Best Price
Lenovo ThinkSystem QLogic QML2692 16 Gb Enhanced Gen 5 Fibre Channel Adapter for Flex System
Lenovo ThinkSystem QLogic QML2692 16 Gb Enhanced Gen 5 Fibre Channel Adapter for Flex System showroom in chennai, velachery, anna nagar, tamilnadu
Key features
The ThinkSystem QLogic QML2692 Mezz 16Gb 2-Port Fibre Channel Adapter has the following features:Maximum performance with up to 1.3 million input/output operations per second (IOPS) to support larger server virtualization deployments and scalable cloud initiatives, and performance to match new multicore processors, SSDs/flash storage, and faster server host bus architectures.
  • Independent function, transmit and receive buffers, an on-chip CPU, DMA channels, and a firmware image for each port enable complete port-level isolation, prevent errors and firmware crashes from propagating across all ports, and provide predictable and scalable performance across all ports.
  • Support forward error correction (FEC) to enhance reliability of transmission and thereby performance.
  • Industry-standard class-specific control (CS_CTL)-based frame prioritization Quality of Service (QoS) helps alleviate network congestion by prioritizing traffic for time-sensitive mission critical workloads for optimized performance.
  • T10-PI data integrity with high performance offload provides end-to-end data corruption protection.
  • Support for Message Signaled Interrupts eXtended (MSI-X) improves host utilization and enhances application performance.
  • Fabric-assigned port worldwide name (FA-WWN) and fabric-based boot LUN discovery (F-BLD) pre-provisioning services allow servers to be quickly deployed, replaced, and moved across the SAN; the creation of zones, LUNs, and other services can be completed before the servers arrive on site.
  • Using the Brocade ClearLink diagnostic port (D_Port) available on the Brocade Gen 5 switches, administrators can quickly run automated diagnostic tests to assess the health of links and fabric components.
  • Read diagnostic parameters (RDP) feature provides detailed port, media, and optics diagnostics to easily discover and diagnose link-related errors and degrading conditions on any N_Port-to-F_Port link.
  • Single-pane-of-glass management across generations of QLogic FC adapters with QLogic QConvergeConsole (QCC).
  • Deployment flexibility and integration with third-party management tools, including the VMware vCenter and Brocade Network Advisor.
  • Support for 16 Gb, 8 Gb, and 4 Gb FC devices.
  • Comprehensive virtualization capabilities with support for N_Port ID Virtualization (NPIV).
  • A common driver model allows a single driver to support all QLogic HBAs on a given OS.
  • Exceptional performance per watt and price/performance ratios.
  • Backward compatibility with existing 4Gb and 8Gb FC infrastructure, leveraging existing SAN investments.
  • Allow application of SAN best practices, tools, and processes with virtual server deployments.
  • Ensure data availability and data integrity.
  • Boot from SAN capability reduces the system management costs and increases uptime.
Call for Best Price

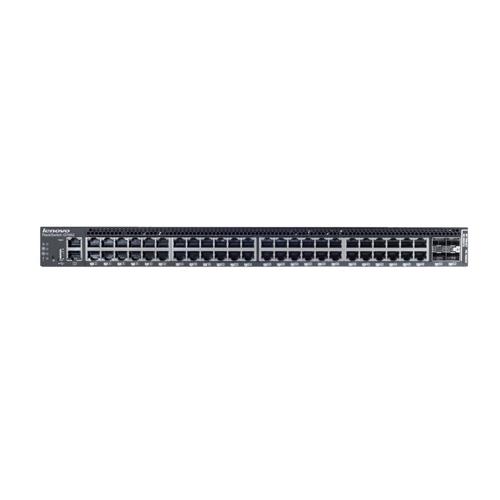

Lenovo G7052 Rack Switch
Lenovo G7052 Rack Switch showroom in chennai, velachery, anna nagar, tamilnadu
  • Performance: 176 Gbps switching throughput (full duplex) 131 Mpps
  • SFP/SFP+ Media Types 10 Gb Ethernet SFP+:
  • 10 GbE short range (SR) SFP+ transceivers
  • 10 GbE long range (LR) SFP+ transceivers
  • 10 GbE RJ-45 SFP+ transceivers
  • 10 GbE SFP+ active optical cables (AOCs)
  • 10 GbE SFP+ direct attach copper (DAC) cables<
  • 1/10 Gb Ethernet SFP+:
  • 1/10 GbE SX/SR SFP+ transceivers
  • Gb Ethernet SFP: 1 GbE short wavelength (SX) SFP transceivers
  • 1 GbE long wavelength (LX) SFP transceivers
  • 1 GbE RJ-45 SFP transceivers
  • Interface options: 48 × 1 GbE (48 RJ-45), 4 × 10 GbE SFP+
  • Dimensions: 17.3 inches wide, 15 inches deep, 1 RU high
  • Weight: 6.1 kg (13.45 lb)
  • Port Speeds: 1 GbE RJ-45 fixed ports:
  • 10/100/1000 Mbps autosensing
  • 10 GbE SFP+ transceivers, DAC cables and AOCs: 10 Gbps
  • 1/10 GbE SFP+ transceivers: 1 Gbps or 10 Gbps
  • 1 GbE SFP transceivers: 1 Gbps
  • Temperature:
  • Ambient operating: 0º C to 40º C
  • Altitude: Operating 1,800 m (6,000 ft)
  • Acoustic Noise
  • Less than 65 dB
  • Heat Dissipation
  • 259 BTU/hour
  • Mean time between failures (MTBF)
  • 204,577 hours with ambient operating temperature of 40º C
  • Airflow
  • Rear to front cooling
  • Power: Single power, 50 - 60 Hz, 100 - 240 V ac with typical power consumption of 76 W, optional external Lenovo RackSwitch G7000 Redundant Power Supply with support
  • for up to four RackSwitch G7052 switches
  • Warranty: 3 year, next business day replacement, phone support and software upgrades, service upgrades and extensions available
Call for Best Price

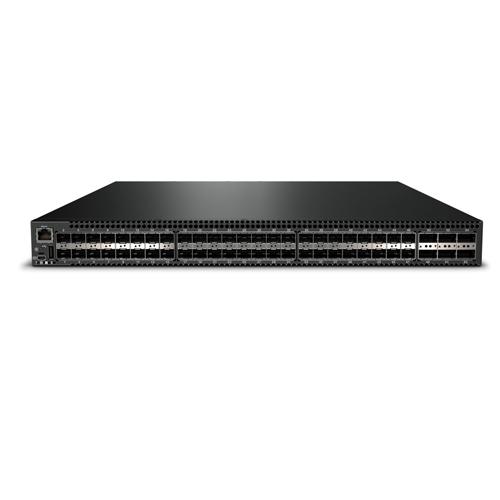

Lenovo G8272 Rack Switch
Lenovo G8272 Rack Switch showroom in chennai, velachery, anna nagar, tamilnadu
  • Performance: 100% line rate performance Sub 600 nanoseconds latency 1.44 Tbps non-blocking switching throughput (full duplex) 1 Bpps
  • Interface options: 48 × 1/10GbE SFP/SFP+ ports, 6 × 40GbE QSFP+ ports Up to 72 × 10GbE SFP+ connections with optional breakout cables
  • Virtualization: VMready, Virtual Fabric (UFP) support
  • OpenFlow : Yes
  • Dimensions: 17.3 inches wide, 19.19 inches deep, 1U high
  • Weight: 9.1 kg (20 lb)
  • Power: Dual load sharing hot swap internal power modules, 50 - 60 Hz, 100 - 240 V ac auto switching per module typical power consumption of 123W
  • Warranty: 3 year customer replaceable unit and onsite limited warranty, next business day 9x5, service upgrades available
Call for Best Price

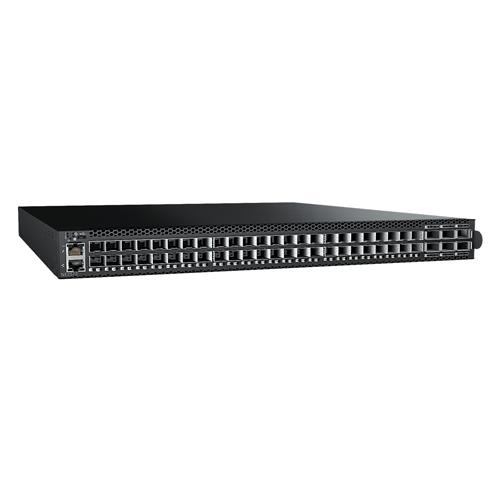

Lenovo ThinkSystem NE2572 Rack Switch
Lenovo ThinkSystem NE2572 Rack Switch showroom in chennai, velachery, anna nagar, tamilnadu
  • Performance: Line rate performance, up to 3.6Tbps aggregated throughput, as low as 480 ns (QSFP28) or 535 ns (SPP28) port to port switching latency, up to 2,678 Million packets per second (Mpps) (64 byte packets), up to 9,216-byte jumbo frames, buffer size: 22MB
  • Interface Configurations: 48x 25Gb Ethernet ports supporting various combinations of:
  • Up to 48x SFP28 25GbE SFP28 transceivers
  • Up to 48x SFP+ 10GbE SFP+ transceivers
  • Up to 48x SFP28 25GbE SFP28 DAC and AOC (Various lengths: 1m, 3m, 5m, etc.)
  • Up to 48x SFP+ 10GbE SFP+ DAC and AOC (Various lengths: 1m, 3m, 5m, etc.)
  • 6x 100Gb Ethernet ports supporting various combination of:
  • Up to 6x QSFP28 100GbE QSFP28 transceivers
  • Up to 6x QSFP 40GbE QSFP transceivers
  • Up to 6x QSFP28 100Gb DAC cable or AOC cable (Various lengths: 1m, 3m, 5m, etc.)
  • Up to 24x SFP28 25GbE ports using special (QSFP28 to 4xSFP28) break out DAC cable or optics with break-out fibers (Various lengths: 1m, 3m, 5m, etc.)
  • Up to 12x QSFP28 50GbE ports using special (QSFP28 to 2xQSFP28) break out DAC cable or optics with break-out fibers (Various Lengths 1m, 3m, 5m, etc.)
  • Up to 24x SFP+ 10GbE ports using special (QSFP to 4xSFP+) break out DAC cable or optics with break-out fibers. (Various lengths: 1m, 3m, 5m, etc.)
  • Virtualization: VLAG, SDN ready
  • Cooling: Front to rear or rear to front cooling, six variable speed hot swap fan assemblies that provide N+1 cooling redundancy
  • Power: Dual load sharing hot swap internal power modules, 213W typical / 289W maximum consumption
  • Management Software Supported: Lenovo XClarity, VMware, OpenStack, Nutanix, Ganglia
  • Automation: Ansible, Chef, Puppet
  • API: Python, REST, Telemetry
  • Limited Warranty: 3 year customer replaceable unit and software warranty
Call for Best Price

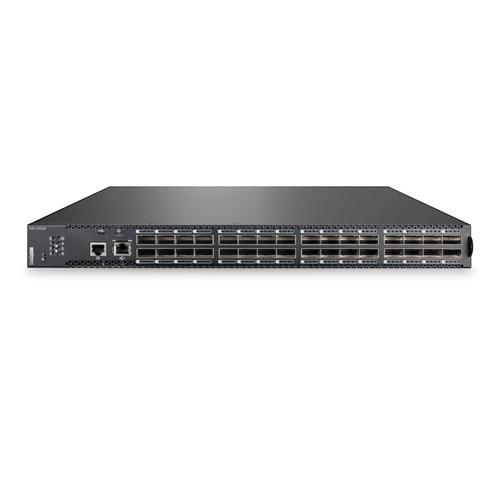

Lenovo ThinkSystem NE10032 Rack Switch
Lenovo ThinkSystem NE10032 Rack Switch showroom in chennai, velachery, anna nagar, tamilnadu
  • Performance: Line rate performance, up to 6.4Tbps switching throughput, as low as 490 ns port to port switching latency, up to 2,702 Million packets per second (Mpps), up to 9,216 byte jumbo frames, 16MB buffer size
  • Interface Configurations: 32x 100Gb Ethernet ports supporting various combinations:
  • Up to 32x QSFP28 100GbE QSFP28 transceivers
  • Up to 32x QSFP 40GbE QSFP transceivers
  • Up to 32x QSFP28 100Gb DAC cable or AOC cable. (Various lengths: 1m, 3m, 5m, etc.)
  • Up to 128x SFP28 25GbE ports using special (QSFP28 to 4xQSFP28) break-out DAC cable or optics with break out fibers. (Various lengths: 1m, 3m, 5m, etc.)
  • Up to 64x QSFP28 50GbE ports using special (QSFP28 to 2xQSFP28) break-out DAC cable or optics with break out fibers. (Various lengths: 1m, 3m, 5m, etc.)
  • Up to 128x SFP+ 10GbE ports using special (QSFP to 4xSFP+) break-out DAC cable or optics with break out fibers. (Various lengths: 1m, 3m, 5m, etc.)
  • Virtualization: VLAG, SDN ready
  • Cooling: Front to rear or rear to front cooling, six variable speed hot swap fan assemblies that provide N+1 cooling redundancy
  • Power: Dual load sharing hot swap internal power modules, 212W typical / 436W maximum consumption
  • Management Software Supported: Lenovo XClarity, VMware, OpenStack, Ganglia, Nutanix
  • Automation: Ansible, Chef, Puppet
  • API: Python, REST, Telemetry
  • Limited Warranty: 3 year customer replaceable unit and software warranty
Call for Best Price

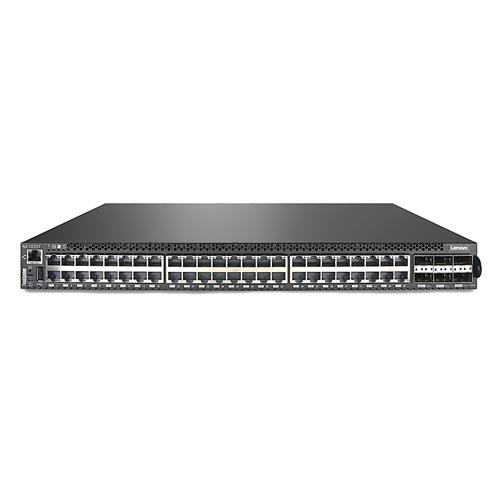

Lenovo ThinkSystem NE1072T Rack Switch
Lenovo ThinkSystem NE1072T Rack Switch showroom in chennai, velachery, anna nagar, tamilnadu
  • Performance: Line rate performance, 1.44Tbps switching throughput, as low as 700 ns (QSFP+) or 2.4 us (10GBASET) port-to-port switching latency,up to 714 Million packets per second (Mpps), up to 9,216 byte jumbo frames, 12MB buffer size
  • Interface Configurations: 48x 10GBase T + 6x 40Gb QSFP+ Ethernet ports or 6x (4x 10GbE) with breakout cables
  • Virtualization: VLAG, SDN ready
  • Cooling: Front to rear or rear to front cooling, five variable speed hot swap fan assemblies that provide N+1 cooling redundancy
  • Power: Dual load sharing hot swap internal power modules, 202W typical / 291W maximum consumption
  • Management Software Supported: Lenovo XClarity, VMware, OpenStack, Ganglia, Nutanix
  • Automation: Ansible, Chef, Puppet
  • API: Python, REST, Telemetry
  • Limited Warranty: 3 year customer replaceable unit and software warranty
Call for Best Price
Lenovo ThinkSystem NE1032T Rack Switch
Lenovo ThinkSystem NE1032T Rack Switch showroom in chennai, velachery, anna nagar, tamilnadu
  • Performance:Line rate performance up to 640Gbps switching throughput; as low as 760 ns (SFP+) or 2.3 us (10GBASE-T) port to port switching latency; up to 476 million packets per second (Mpps) (64 byte packets); up to 9,216 byte jumbo frames; 12MB buffer size
  • Interface Configurations: 24x 10GBase T + 8x 10Gb SFP+ Ethernet ports
  • Virtualization: VLAG, SDN ready
  • Cooling: Front to rear or rear to front cooling, three variable speed hot swap fan assemblies that provide N+1 cooling redundancy
  • Power: Dual load sharing hot swap internal power modules, 96W typical / 99W maximum consumption
  • Management Software Supported: Lenovo XClarity, VMware, OpenStack, Ganglia, Nutanix
  • Automation: Ansible, Chef, Puppet
  • API: Python, REST, Telemetry
  • Limited Warranty: 3years customer replaceable unit and software warranty
Call for Best Price

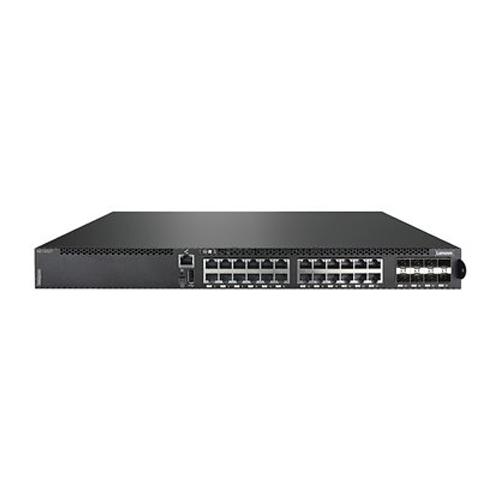

Lenovo ThinkSystem NE1032 Rack Switch
Lenovo ThinkSystem NE1032 Rack Switch showroom in chennai, velachery, anna nagar, tamilnadu
  • Performance: Line rate performance up to 640Gbps switching throughput; as low as 760 ns port to port switching latency, up to 476 Million packets per second (64-byte packets); up to 9,216 byte jumbo frames; 12MB buffer size
  • Interface Configurations: 32x 10Gb Ethernet SFP+ ports
  • Virtualization: VLAG, SDN Ready
  • Cooling: Front to rear or rear to front cooling, three variable speed hot swap fan assemblies that provide N+1 cooling redundancy
  • Power: Dual load sharing hot swap internal power modules, 96W typical / 99W maximum consumption
  • Management Software Supported: Lenovo XClarity, VMware, OpenStack, Ganglia, Nutanix
  • Automation: Ansible, Chef, Puppet
  • API: Python, REST, Telemetry
  • Limited Warranty: 3 year customer replaceable unit and software warranty
Call for Best Price

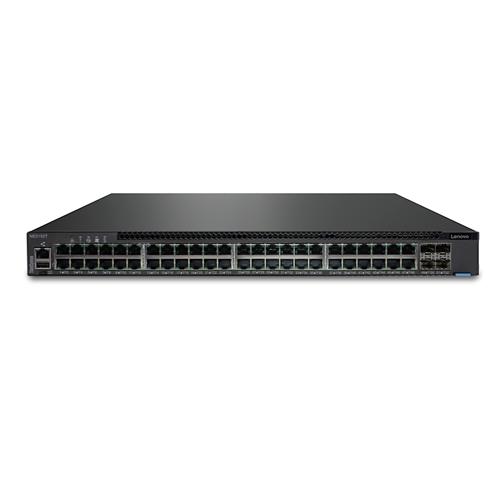

Lenovo ThinkSystem NE0152T Rack Switch
Lenovo ThinkSystem NE0152T Rack Switch showroom in chennai, velachery, anna nagar, tamilnadu
  • Part Number: NE0152T
  • Ports: 48x 1GBASE T RJ45 ports, 4x 10GbE SFP+ ports
  • Connectitivty: Lenovo CNOS included
  • Redundant, hot swap power & fansGet Lenovo CNOS on a full featured high performance 1GBASE T switch
  • optimized for data center management or SMB data network
Call for Best Price

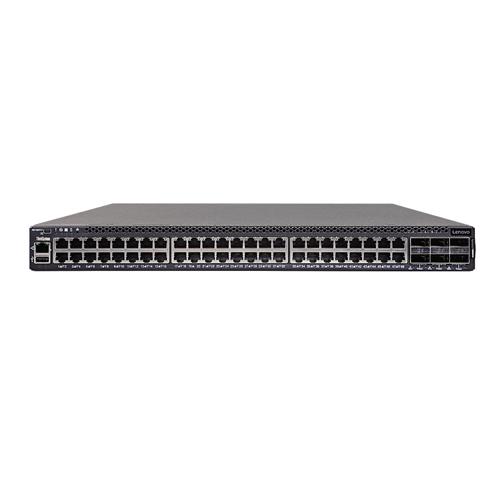

Lenovo ThinkSystem NE1064TO Rack Switch
Lenovo ThinkSystem NE1064TO Rack Switch showroom in chennai, velachery, anna nagar, tamilnadu
  • Performance: Line rate performance, 1.08Tbps switching throughput, up to 714 Million packets per second (Mpps), up to 9,416 byte jumbo frames, 32MB buffer size
  • Interface configurations: 48x 10GBase T (RJ45)
  • 6x 100GbE ports supporting various combinations of: Up to 6x 100GbE QSFP28 transceivers
  • Up to 16x 25GbE SFP28 ports using special (QSFP28 to 4x SFP28) break out DAC or optics cable
  • Up to 16x 10GbE SFP+ ports using special (QSFP28 to 4x SFP+) break out DAC or optics cable
  • Management interfaces: 1x RJ45 Ethernet Management port
  • 1x Mini USB (Type AB) serial console port
  • 1x USB2.0 for mass storage access
  • Cooling: Rear to front model, with five variable-speed hot swap fan modules that provide 4+1 redundancy
  • Power: Dual hot swap internal power modules that provide 1+1 redundancy with 407W maximum consumption
  • Network OS: ONIE (Open Network Install Environment)
  • Limited Warranty: 3 year customer replaceable unit next business day with service and extensions available
Call for Best Price
